MOCK SERVERS
Swagger / OpenAPI
Auto-generated OpenAPI 3.0 documentation and interactive Swagger UI from your mock server routes — no manual spec writing needed.
Overview
Each mock server can auto-generate OpenAPI 3.0 documentation from its routes. No manual spec writing needed — derived directly from your route definitions.
Served at
/_openapi.json (spec) and /_swagger (interactive UI)Enabling
Toggle Swagger in mock server settings. When enabled:
Two special endpoints are added:
/_openapi.json and /_swaggerView Swagger button appears in the UI to open the browser
Accessing
| Endpoint | Description |
|---|---|
| /_openapi.json | Raw OpenAPI 3.0 JSON spec |
| /_swagger | Interactive Swagger UI (rendered in browser) |
URL:
http://localhost:{port}/_swagger — also accessible from the "View Swagger" button in mock server detail.
Generated Spec
The spec is generated from your routes — each route becomes a path + operation:
Method, path, status code, and response headers mapped
Response body example included if static body configured
Updates live as you add or modify routes

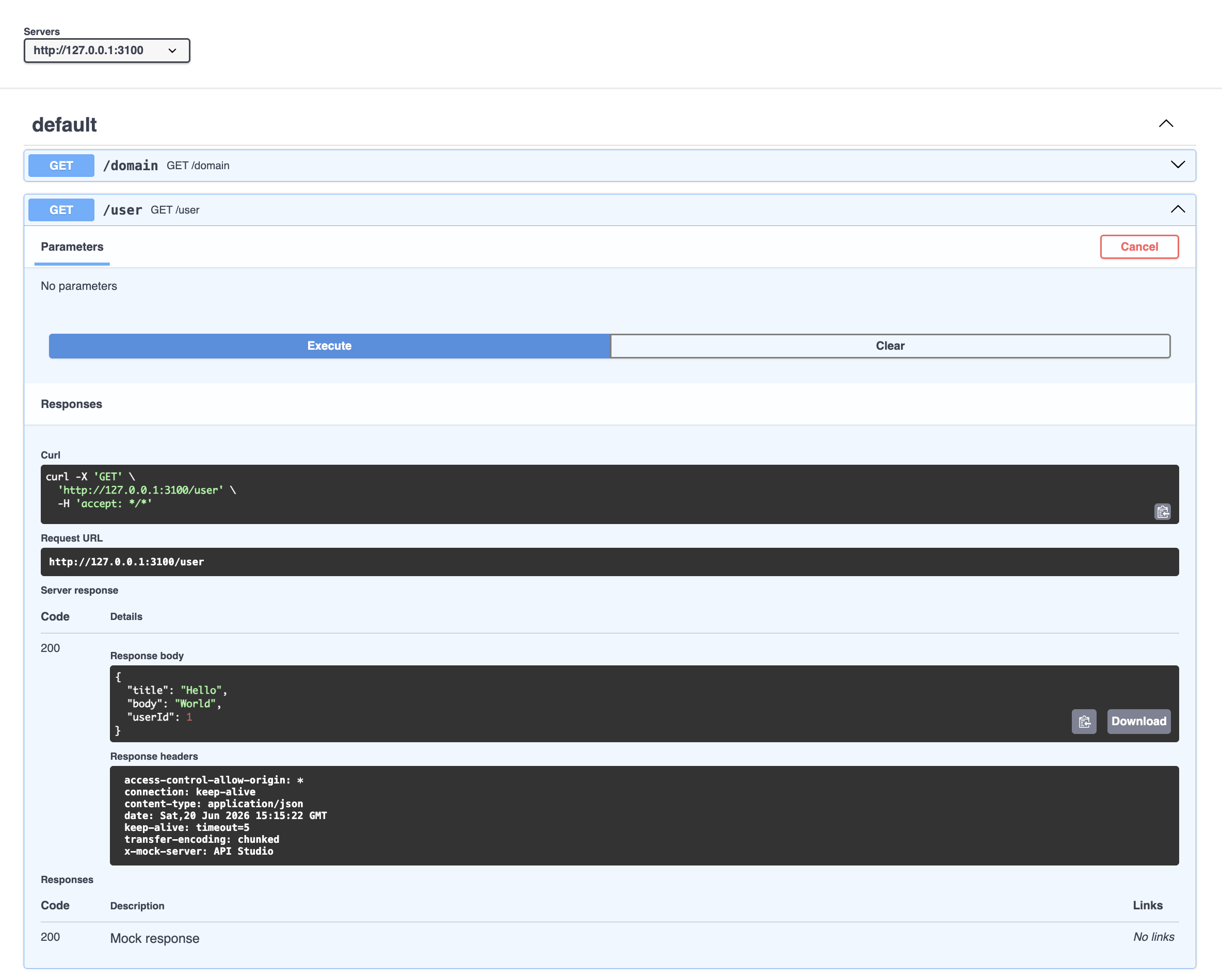

Interactive UI
Full Swagger UI with "Try it out" functionality:
Test your mock endpoints directly from the browser
Shows request/response examples
Useful for sharing with frontend developers or QA
Use Cases
Share mock API docs with frontend team
Verify mock routes match expected contract
Quick visual review of all configured endpoints
Generate client SDKs from the spec
