Management MCP

Overview

The Management MCP server is a built-in MCP (Model Context Protocol) server that exposes 33 tools for full workspace management via AI. Any MCP-compatible client can connect and control API Studio programmatically.

Compatible clients: GitHub Copilot, Cursor, Kiro, Claude Desktop, Amazon Q

Default port: 3199

Endpoint: http://127.0.0.1:3199/mcp

Does NOT auto-start — must be enabled manually in settings

Note: The Management MCP server does not start automatically. You must explicitly enable it via VS Code settings or the Mock+MCP panel before AI clients can connect.

Enabling

Two ways to enable the Management MCP server:

1

VS Code Settings

Settings → Extensions → API Studio → Management MCP Enabled

Setting key: openPost.managementMcp.enabled

Port: openPost.managementMcp.port (default: 3199)

2

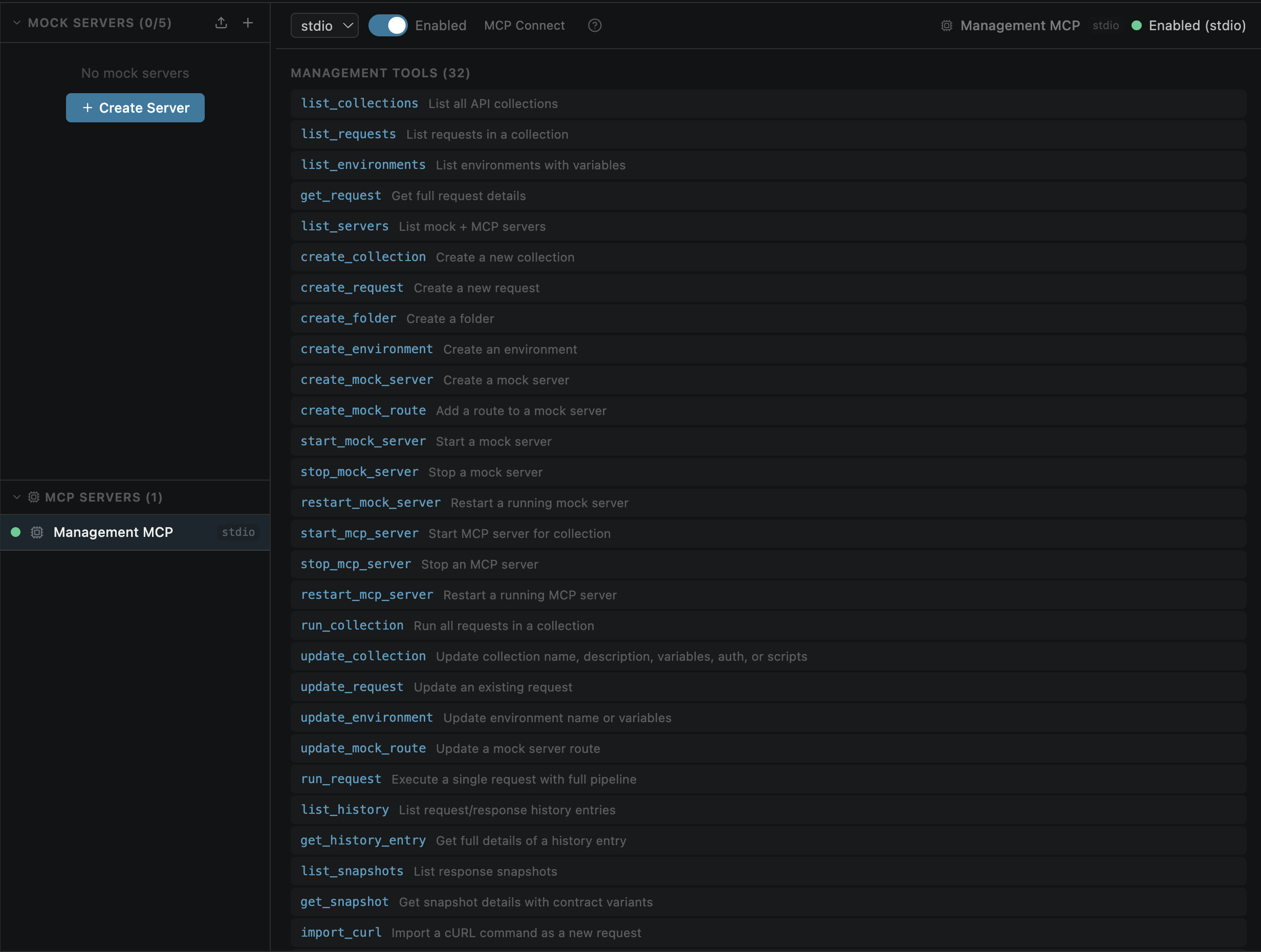

Mock+MCP Panel

Mock+MCP view → MCP Servers section → Management MCP → toggle on

Important: The Management MCP server cannot be deleted from the UI — it can only be started and stopped. It always appears first in the MCP servers list.

All 33 Tools

The Management MCP exposes the following tools, organized by category:

Read (5 tools)

Tool	Description
list_collections	List all collections (local + global)
list_requests	List requests in a collection or folder
list_environments	List all environments (local + global)
get_request	Get full details of a specific request
list_servers	List mock and MCP server instances

Write (17 tools)

Tool	Description
create_collection	Create a new collection
create_request	Create a new request in a collection
create_folder	Create a folder in a collection
create_environment	Create a new environment
create_mock_server	Create a new mock server
create_mock_route	Add a route to a mock server
start_mock_server	Start a mock server
stop_mock_server	Stop a running mock server
restart_mock_server	Restart a mock server
start_mcp_server	Start a collection-sourced MCP server
stop_mcp_server	Stop a running MCP server
restart_mcp_server	Restart an MCP server
update_collection	Update collection name, description, auth, or scripts
update_request	Update request fields including testRules and setVariables
update_environment	Update environment variables
update_mock_route	Update an existing mock route
set_active_environment	Switch the active environment

Execution (2 tools)

Tool	Description
run_request	Execute a single request — full pipeline: auth, scripts, cookies, testRules, setVariables, digest retry, history save
run_collection	Run all requests — sequential (shared env for chaining) or parallel (separate copies)

History & Snapshots (4 tools)

Tool	Description
list_history	List request history entries
get_history_entry	Get full details of a history entry
list_snapshots	List snapshot contracts
get_snapshot	Get full details of a snapshot

Import / Export (4 tools)

Tool	Description
import_curl	Import a cURL command as a request
import_openapi	Import an OpenAPI/Swagger spec as a collection
export_curl	Export a request as a cURL command
export_openapi	Export a collection as an OpenAPI spec

Security (1 tool)

Tool	Description
security_scan	Run automated security probes against an endpoint

Tool Categories Explained

Read

List and inspect existing data — collections, requests, environments, servers. No mutations.

Write

Create, update, and delete resources. Includes server lifecycle management (start/stop/restart).

Execution

run_request executes the full pipeline — auth injection, pre-request scripts, HTTP call, test runner, digest retry, history save. run_collection runs all requests either sequentially (shared env vars for chaining) or in parallel (separate env copies per request).

Import / Export

Convert between formats — import cURL commands or OpenAPI specs, export requests as cURL or collections as OpenAPI.

Security

Automated security testing — run probes against endpoints to detect common vulnerabilities.

Security Scan Tool

The security_scan tool runs automated security probes against an endpoint. It checks for common vulnerabilities and returns findings with severity levels.

Probe Types

Probe	What it checks
injection	SQL injection and XSS vulnerabilities
broken-auth	Missing or weak authentication checks
security-headers	HSTS, Content-Security-Policy, X-Frame-Options
information-disclosure	Stack traces in errors, server version headers
rate-limit	Burst request testing for rate limiting
mass-assignment	Extra field injection to test for unprotected properties

Output: Each finding includes a severity level (critical, high, medium, low, info), description, and remediation guidance.

Stdio Mode

For AI clients that prefer stdio transport over HTTP, API Studio provides a stable script path that survives extension upgrades.

Stable script path:

~/.openpost/global/mcp-stdio.js

Copied automatically on extension activation

Survives extension version upgrades without manual path updates

MCP Connect panel shows both HTTP URL and stdio command

Usage:

node ~/.openpost/global/mcp-stdio.js

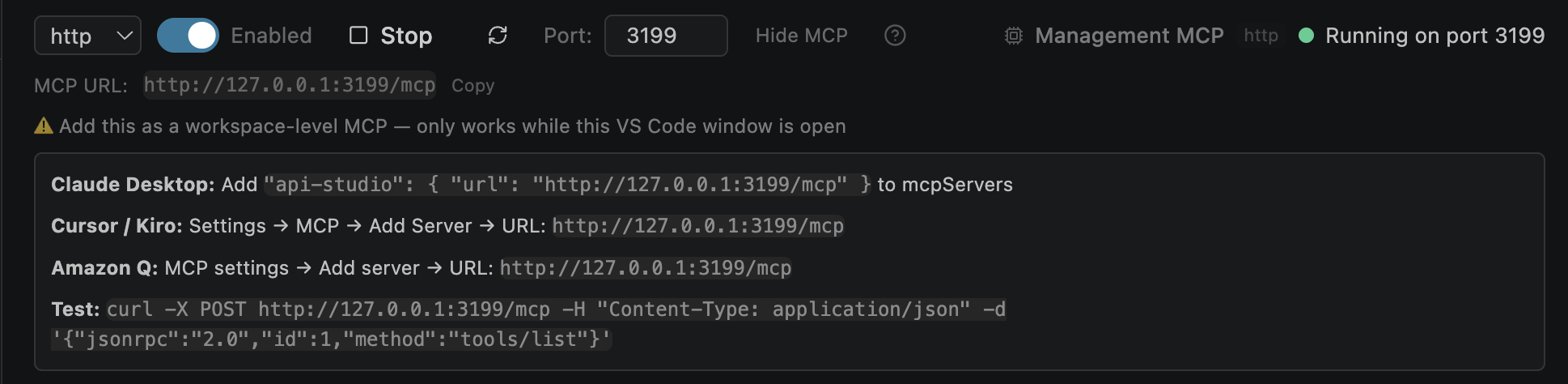

MCP connection instructions showing HTTP URL

The MCP Connect panel shows connection instructions for both HTTP and stdio modes

Multi-Window Note

The Management MCP server runs as a single global instance — the first VS Code window to start it wins.

Important: Local scope operations (like create_collection, create_request without scope: "global") always target the workspace where the Management MCP server was started.

Workarounds

Use scope: "global" for collections you want accessible across all workspaces

Close the primary window and reload the target window so the Management MCP starts there instead
